Building Thermography: Capabilities and Limitations

Radiometric versus visual thermal

Not all thermal cameras produce the same output, and this distinction is important for anyone specifying or evaluating a thermal building inspection.

Visual thermal cameras produce colour-mapped images where warmer areas appear in different colours from cooler areas. They do not record temperature data. You can see that one area appears warmer than another, but you cannot measure the temperature difference, reprocess the imagery later, or compare readings across different survey dates.

Radiometric thermal cameras record a temperature value for every pixel in the image. The output is a dataset, not just a picture. Each pixel carries a measured temperature, which means the imagery can be analysed after the flight, measurements can be taken, temperature differentials can be calculated, and the data can be compared against future surveys. For building condition assessment, radiometric data is the minimum standard.

What thermal imaging shows

Thermal imaging captures differences in surface temperature. Those differences reveal underlying conditions in the building fabric that are not visible to the eye.

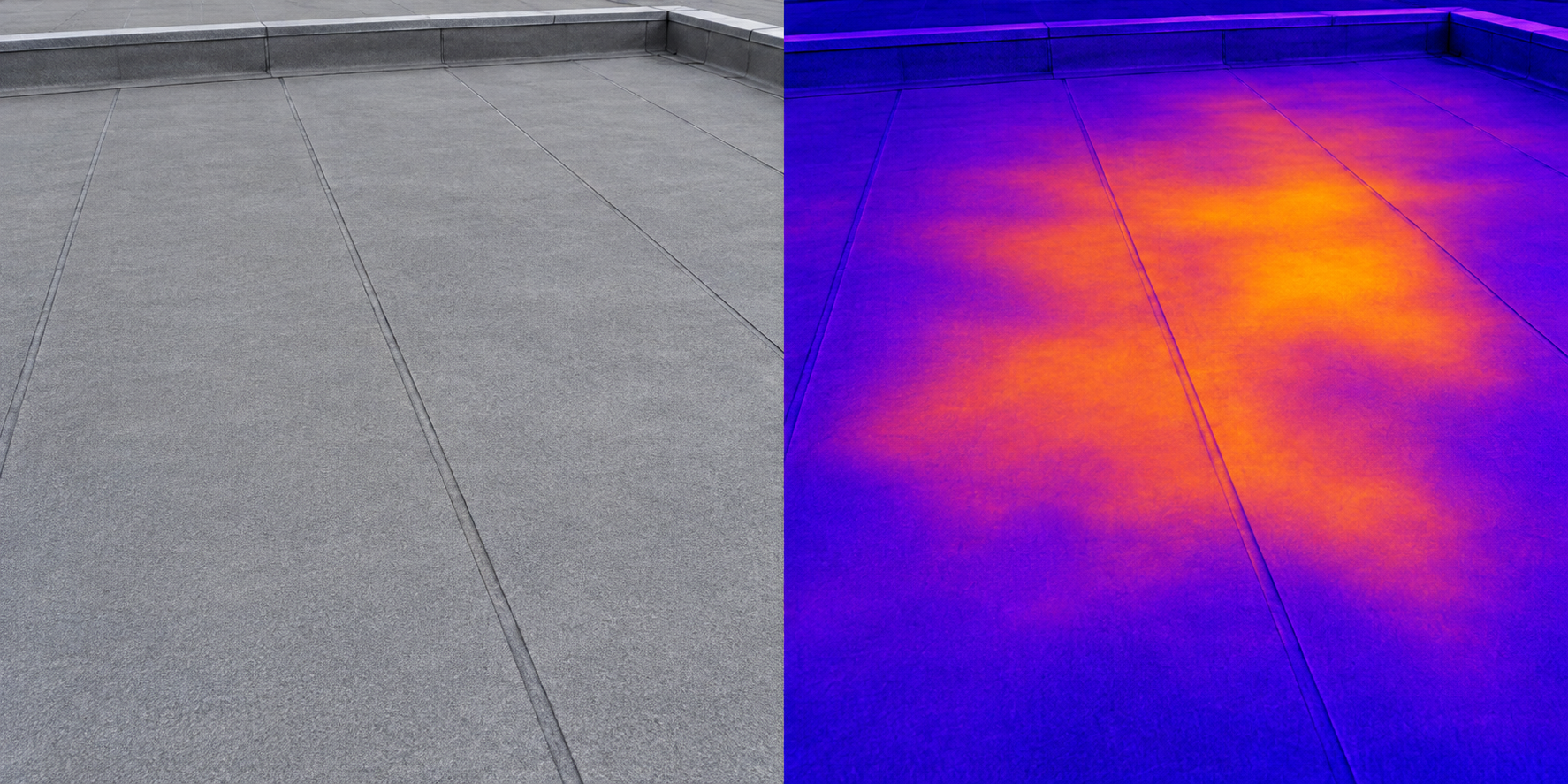

Trapped moisture in flat roof constructions. Water has a higher thermal mass than dry insulation. After a warm day, as the building cools in the evening, areas where moisture is trapped retain heat for longer. In a radiometric thermal image, these areas appear as warmer zones against a cooler background. This is the single most common application of drone thermography in building assessment.

Insulation voids and failures. Where insulation is missing, displaced, or degraded, the thermal barrier is compromised. In cold weather, heat escapes and the external surface above the void appears warmer than adjacent areas.

Cold bridging. Where structural elements pass through the insulation layer, they conduct heat directly between interior and exterior. Thermal imaging from outside reveals the pattern across an elevation.

Air leakage paths. Where air moves through gaps in the building envelope, the temperature difference creates a visible thermal signature. Common locations include window surrounds, door frames, service penetrations, and junctions between different construction elements.

What thermal imaging does not show

Thermal imaging does not see through materials. It captures surface temperature. If a defect has no thermal expression on the surface, thermal imaging will not detect it. A dry roof membrane with a small crack that has not yet admitted water will not produce a thermal anomaly.

It does not diagnose causes. A warm area on a flat roof may indicate trapped moisture. It may also indicate a warm pipe beneath the membrane, a different insulation thickness, or residual solar heating. Interpretation matters.

It does not work in all conditions. Effective thermal survey requires a temperature differential between interior and exterior, and stable weather. Heavy rain, strong wind, direct solar heating, and minimal temperature differential all reduce clarity.

It cannot quantify the volume of moisture. It can show where moisture is present. It cannot tell you how much water is trapped, how deep the saturation extends, or whether the substrate is damaged. Those questions require physical investigation.

When thermal inspection adds genuine value

Flat roof condition assessment across a portfolio. Before committing to roof replacement on any individual building, a thermal survey identifies which roofs have moisture retention, which are thermally sound, and which are borderline.

Water ingress investigation. When water is appearing internally and the visual inspection does not reveal an obvious source, thermal imaging can identify where moisture is trapped, helping to narrow the search area.

Pre-purchase building surveys. For acquisitions, thermal imaging reveals building-envelope issues that a visual survey would miss entirely.

Energy performance assessment. For buildings where energy performance is a regulatory concern, thermal imaging identifies specific locations where the envelope is underperforming, allowing targeted retrofit.

Post-remediation verification. After a roof replacement or insulation upgrade, a thermal survey confirms whether the work was completed to specification.

Survey timing and conditions

The quality of thermal data depends heavily on when the survey is conducted. For roof moisture surveys, optimal conditions are: late afternoon to early evening after the roof has been heated by the sun, recent rainfall followed by a dry warm day, low wind speeds, and late spring through early autumn in the UK.

For insulation and air leakage surveys, colder weather with a significant temperature difference between heated interior and cold exterior produces the clearest results.

Ovrsite plans thermal capture timing around forecast conditions. If the conditions on the scheduled day are unsuitable, the survey is rescheduled rather than conducted with compromised data.

What you receive

A thermal inspection from Ovrsite delivers radiometric thermal imagery of the entire inspected area with temperature data per pixel, a thermal anomaly map showing all identified areas of concern categorised by type, correlation with visual inspection linking thermal findings to visible surface defects, located and graded findings with each anomaly positioned and assessed for severity, and interpretation notes explaining what each anomaly likely represents.

All thermal and visual evidence is held in Ovrsite Enterprise for ongoing reference, year-on-year comparison, and integration with your condition management process.
